Journal of Animal Science and Biotechnology
Research

A behavior and physiology-based decision support tool to predict thermal comfort and stress in non-pregnant, mid-gestation, and late-gestation sows

1 ,2 ,2 ,2 ,3 ,4 ,4

Abstract

Background

Although thermal indices have been proposed for swine, none to our knowledge differentiate by reproductive stage or predict thermal comfort using behavioral and physiological data. The study objective was to develop a behavior and physiology-based decision support tool to predict thermal comfort and stress in multiparous (3.28 ± 0.81) non-pregnant (n= 11), mid-gestation (n= 13), and late-gestation (n= 12) sows.

Results

Regression analyses were performed using PROC MIXED in SAS 9.4 to determine the optimal environmental indicator [dry bulb temperature (TDB) and dew point] of heat stress (HS) in non-pregnant, mid-gestation, and late-gestation sows with respiration rate (RR) and body temperature (TB) successively used as the dependent variable in a cubic function. A linear relationship was observed for skin temperature (TS) indicating that TDBrather than the sow HS response impacted TSand so TSwas excluded from further analyses. Reproductive stage was significant for all analyses (P< 0.05). Heat stress thresholds for each reproductive stage were calculated using the inflections points of RR for mild HS and TBfor moderate and severe HS. Mild HS inflection points differed for non-pregnant, mid-gestation, and late gestation sows and occurred at 25.5, 25.1, and 24.0 °C, respectively. Moderate HS inflection points differed for non-pregnant, mid-gestation, and late gestation sows and occurred at 28.1, 27.8, and 25.5 °C, respectively. Severe HS inflection points were similar for non-pregnant and mid-gestation sows (32.9 °C) but differed for late-gestation sows (30.8 °C). These data were integrated with previously collected behavioral thermal preference data to estimate the TDBthat non-pregnant, mid-gestation, and late-gestation sows found to be cool (TDB< TDBpreference range), comfortable (TDB= TDBpreference range), and warm (TDBpreference range < TDB< mild HS).

Conclusions

The results of this study provide valuable information about thermal comfort and thermal stress thresholds in sows at three reproductive stages. The development of a behavior and physiology-based decision support tool to predict thermal comfort and stress in non-pregnant, mid-gestation, and late-gestation sows is expected to provide swine producers with a more accurate means of managing sow environments.

Background

Heat stress (HS) is a threat to swine productivity, health, and welfare [1,2,3] that will become increasingly common as global temperatures continue to rise and extreme climatic events increase in frequency [4, 5]. Furthermore, the negative effects of global climate change and increasing environmental heat loads on animal agriculture may be exacerbated by advances in genetic selection, nutrition, and management that have increased pig performance leading to more efficient meat production, faster growth rates, and greater lactation outputs by sows to support greater litter sizes [6,7,8]. While these advancements promote agricultural sustainability and producer profitability, improved performance has resulted in greater overall metabolic heat production in modern swine [9]. This increase in metabolic heat production may be exacerbated by physiological states such as lactation [10, 11] or gestation [12], and reduces the thermal gradient between the pig and the external environment [13]. As a result, HS susceptibility is likely greater, which can negatively impact health and productivity and, subsequently, may reduce the performance, health, and welfare of future generations of pigs through in utero heat stress (IUHS) [3, 14].

Research by our group and others demonstrates that IUHS reduces postnatal productivity, health, and welfare in pigs [3, 14], and has negative implications for swine industry profitability and sustainability. Specifically, IUHS reduces postnatal growth performance [15, 16], increases the prevalence of behaviors indicative of stress (e.g., aggression, lying) during postnatal life [17, 18], exacerbates physiological indicators of stress (i.e., cortisol, ACTH) following common production stressors [18,19,20,21], reduces the ability of pigs to maintain euthermia under HS conditions [22, 23], impairs reproductive function [24], and compromises the immune system of pigs during postnatal life [19, 25]. While some studies have unsuccessfully attempted to mitigate the negative effects of IUHS through nutritional strategies [16], pregnant sow management and HS mitigation during gestation likely represents the best method to decrease IUHS incidence and improve the postnatal performance, health, and welfare of pigs gestated during hot times of the year.

The first step in mitigating gestating sow HS and the effects of IUHS in offspring is understanding what environmental conditions cause HS in gestating sows. Currently, there are recommended thermal conditions for swine at different production stages [26]. However, these guidelines are based upon 25- to 41-year-old data estimating the thermal conditions of pigs using mathematical modeling [13] based on previous research [27, 28] rather than animal experimentation. Furthermore, no reproductive stage differentiation exists (i.e., non-pregnant/early gestation vs. mid-gestation vs. late-gestation) [26], which is important because gestation stage impacts sow HS sensitivity [29,30,31]. In addition, while several researchers have utilized the thermal humidity index (THI) developed by NOAA [32] to predict HS in pigs [33,34,35], this index was not originally designed for use in pigs, nor does it differentiate HS thresholds based on production stage or physiological state. Thus, THI may not be an accurate and precise predictor of HS in swine. Furthermore, although several swine specific thermal indices or prediction models have been proposed in recent years, these indices rely on the use of theoretical data or predictions [36,37,38] with validations on a small number (n = 8) of animals [39], or limited data collection in a relatively small number of only non-pregnant sows [40], and none to our knowledge have incorporated both behavioral and physiological metrics of thermal stress and thermal comfort in pigs differentiated by reproductive stage. Therefore, the study objective was to develop a swine-specific decision support tool to predict thermal comfort and stress based on the thermoregulatory and behavioral responses of sows with current genetics at three reproductive stages (e.g., non-pregnant, mid-gestation, late-gestation).

Methods

Establishing mild, moderate, and severe HS thresholds

Thermoregulatory data collection

All live animal data collection procedures were approved by the Purdue University Animal Care and Use Committee (protocol # 1811001823). Animal care and use standards were based upon the Guide for the Care and Use of Agricultural Animals in Research and Teaching [41]. All data collection procedures and resulting thermoregulatory, production, and physiological data have been previously presented by McConn et al. [31]. For the purposes of this paper, only the environmental [e.g., dry bulb temperature (TDB), dew point (DP)] and thermoregulatory [e.g., skin temperature (TS), respiration rate (RR), and body temperature (TB)] measures from McConn et al. [31] were considered for the analyses. Briefly, 36 maternal line sows (Yorkshire × Landrace) bred to Duroc sires were tested in 4 repetitions that began and ended at the same approximate time each day. Treatment groups included sows from three reproductive stages: 11 non-pregnant sows (n = 2–3/repetition; parity 3.27 ± 0.86; 244.2 kg bodyweight), 13 mid-gestation sows (n = 3–4/repetition; 56.38 ± 11.22 d pregnant; parity 3.25 ± 0.83; 218.9 kg bodyweight), and 12 late-gestation sows (n = 3/repetition; 97.00 ± 4.95 d pregnant; parity 3.33 ± 0.75; 251.2 kg bodyweight). Early gestation sows were not included as a treatment group because it was expected that their response would be similar to non-pregnant sows due to limited fetal growth in the first trimester, which is the driver of HS sensitivity differences in gestating sows [31]. Sows were moved into individual pens (1.22 m × 2.01 m) in a thermoneutral [TN; 21.1 ± 2.0 °C and 29.4% ± 1.6% relative humidity (RH)] room for 5.0 ± 0.7 d prior to the experiment [31]. At the start of the experiment, sows were moved (approximately 3 m walking distance) [42] into individual pens (1.22 m × 2.01 m) within an environmentally controlled room where they were maintained at the lower end of the currently established TN zone for sows > 100 kg [4] (15.1 ± 1.9 °C and 50.7% ± 5.6% RH) for 270 min prior to the experiment and allowed to acclimate to their new environment. At the time of the experiment, the TDB was increased gradually from 19.84 ± 2.15 °C to 35.54 ± 0.43 °C, over a 400-min period and RH ranged from 32.83% to 50.13% and averaged 40.49% ± 18.57%. The environmental room contained 2 data loggers (Hobo; data logger temperature/RH; accuracy ± 0.20 °C; Onset; Bourne, MA, USA) to record TDB, RH, and DP in 5-min intervals as previously described [31]. Room air speed (m/s) was measured with an anemometer (Testo Model 425; Sparta, NJ, USA) at the pig level (approximately 0.50 m above the slatted floor) every 20 min during the entire experiment and measured 0.11 ± 0.10 m/s throughout the trial. Vaginal temperature (referred to as TB in the present paper), TS, and RR were measured in 20-min intervals for all sows and measurement methods were previously described by McConn et al. [31]. Briefly, TB was collected using a calibrated thermochron temperature recorder (iButton, calibrated accuracy ± 0.11 °C; resolution = 0.125 °C; Dallas Semi-conductor, Maxim, Irving, TX, USA), TS was measured using an infrared camera (FLIR Model T440, accuracy ± 2%; emissivity = 0.98; resolution = 0.04 °C; FLIR Systems Inc.; Wilsonville, OR, USA), and RR was determined by counting flank movements through visual observation. The DP and TDB that occurred at the exact time TS, TB, and RR were measured were used to establish the HS thresholds in the analyses. All sows, regardless of reproductive stage, were limit fed to maintenance (2.27 kg/d) resulting in no feed intake differences between sow groups per common commercial swine production practices [43] as previously described [31].

Overall regression analyses

Regression analyses were performed to determine the optimal environmental indicator of HS in non-pregnant, mid-gestation, and late-gestation sows using the linear model procedure with all animal-based indicators successively used as dependent variables. The base model for modeling the animal-based indicators included the effects of TS, TB, and RR. Skin temperature had a linear relationship with increasing TDB, regardless of reproductive stage (Fig. 1) [31]. Therefore, TS was not included in further analyses because this linear relationship was influenced by increasing environmental heat load rather than the sows’ biological HS response or reproductive stage. Regression analyses were then performed, and several combinations of environmental measures (TDB and DP) were added to the model when significant (P < 0.05; Table 1). The goodness of fit of the regression equations was evaluated by the Akaike’s Information Criteria (AIC) and residual variance based upon previous research [44,45,46,47].

Fig. 1
figure 1

Linear regression of the effects of reproductive stage (late-gestation, mid-gestation, and non-pregnant) on skin temperature (TS) in multiparous (3.28 ± 0.81) sows exposed to incrementally increasing dry bulb temperature (TDB)

Table 1 Evaluation of regression model fit after inflection point determination
Full size table

Separating reproductive stage

The first analysis was conducted using the data set that included the reproductive stages together to evaluate means, variances, and the relationships of RR and TB in sows at different reproductive stages to increasing TDB using the MIXED procedure of SAS (SAS 9.4, Cary, NC, USA) with a heterogeneous AR(1) covariance structure which was selected based on the AIC value (compares the fit of the covariance structures) [48]. Reproductive stage was significant for linear, quadratic, and cubic analyses (P < 0.05; Table 2); thus, reproductive stage was separated for future analyses.

Table 2 Evaluating the significance of the interaction of reproductive stage and the linear, quadratic, and cubic regression of TDB
Full size table

Random effect of sow

In the second analysis, before separating sow by reproductive stage, the random effect of sow was tested to determine whether it would improve the model, based on the AIC and residual variance. A random effect of sow allows for increased flexibility in fitting the sow variance in the RR and TB curves. Since the addition of sow as a random effect improved the AIC and residual variance (Table 3), the random effect of sow was used for all future analyses.

Table 3 Evaluation of regression model fit
Full size table

Random effect of TDB

The third analysis was performed to determine how the random effect of TDB would be included to account for the correlation with the individual sow (subject = sow). The random effect was first included as the intercept (B0) and then included as B0 and linear regression coefficient (B1) based on the AIC and residual variance. Since the AIC and residual variance was improved when the random effect was included as B0 and B1 (Table 3), this was used for the remainder of the analyses. Note, in most cases AIC values are positive; however, in some cases the AIC value can be impacted by an additive constant resulting in a negative AIC value [49].

Determination of inflection points

The fourth analysis began by separating the reproductive stage to estimate the environmental measure (TDB) as a linear, quadratic, or cubic function for RR and TB based on the AIC and residual variance. These functions were used to describe the sow’s response of RR and TB to changes in the TDB. Next, we estimated the inflection points for both variables based on the determined functions and including breakpoint analyses [50]. Specifically, PROC MIXED allowed for inclusion of the random (sow) component in the model with a heterogeneous AR(1) covariance structure to determine the inflection points. Based on the AIC and residual variance (Table 1), TDB minus TDB inflection point was used in the final model. Physiological differences between treatment groups were analyzed using generalized linear mixed models via PROC MIXED with the main effect of the variable (RR or TB). A cubic equation was used to describe the RR and TB response due to increasing TDB. The inflection point was solved by finding value at which the RR or TB started to increase via breakpoint analyses. The RR inflection point was used to determine mild HS because greater RR is the first active attempt by the sow to dissipate excess heat gain due to the environmental heat load [51, 52]. To determine moderate HS, the TB inflection point was used as an indicator of the TDB at which heat loss mechanisms (i.e., RR and TS) could no longer allow the sow to maintain euthermia under a given environmental heat load and the TB set-point was increased above normal as described by Curtis [13]. Finally, an abrupt uncontrollable change in TB (> 0.20 °C) [53] after the inflection point indicated that heat gain overwhelmed heat loss mechanisms and TB began to rise uncontrollably. This was considered the point at which the upper critical temperature limit had been reached and severe HS began to occur as previously described by Curtis [13]. Based on the AIC and residual variance (Table 3), TDB minus TDB inflection point was used for the final analysis. Once the inflection points were detected, the points less than or equal to the inflection point were reanalyzed to confirm there was no linear increase of the variable relative to TDB. After reanalysis, it was determined that the points less than or equal to the inflection point had a linear slope equal to zero.

Addition of dew point

After mild, moderate, and severe HS thresholds were estimated for TDB, DP was added to the model when significant to better fit the model. Dew point represents a true indication of the amount of moisture in the air [54], which was evaluated to determine best fit of the model. The DP inflection points for mild, moderate, and severe HS were determined and were calculated similarly to the TDB inflection points. Based on the AIC and residual variance (Table 1), DP minus DP inflection point was used in the final model. When DP was not significant, DP was removed from the model completely (Table 1). Finally, the cross product of (TDB – TDB inflection point) × (DP – DP inflection point) was also added to the model, based on the improved AIC and residual variance.

Establishing cool, comfortable, and warm TDB thresholds

The behavioral thermal preference data used to establish cool, comfortable, and warm TDB thresholds in this study were previously collected and published by our group [55]. All live animal data collection procedures were approved by the Purdue University Animal Care and Use Committee (protocol #1712001652). Animal care and use standards were based upon the Guide for the Care and Use of Agricultural Animals in Research and Teaching [41]. Briefly, non-pregnant (n = 7), mid-gestation (n = 5; 58.5 ± 5.7 d pregnant), and late-gestation (n = 6; 104.7 ± 2.8 d pregnant) multiparous maternal line (Yorkshire × Landrace; parity 3.4 ± 1.2) sows were selected for testing [55]. Sow thermal preferences were tested using two custom designed thermal gradient apparatuses (12.2 m × 1.52 m × 1.86 m; L × W × H). The thermal gradient apparatuses provided a thermal gradient ranging from 10.35 ± 0.42 °C to 30.49 ± 0.45 °C that was monitored using data loggers (HOBO Data Logger; U12-012, Onset Computer Corporation, MA, USA; temperature range of –20 °C to 70 °C with accuracy of ± 0.35 °C and RH range 5% to 95% with accuracy of ± 2.5% to max 3.5%) placed 0.94 m above the floor and 0.61 m apart [55]. All sows were allowed a 24-h acclimation period within the thermal gradient apparatuses before being tested for an additional 24 h [55]. All sows were allowed to consume their entire daily diet ration (1.82 kg/d) immediately prior to entering the apparatuses per common commercial swine production practices [43] and no reproductive stage-related feed intake differences were observed as previously described [55]. Water was provided ad libitum within the thermal gradient apparatuses. While being housed within the thermal gradient apparatuses, sows were continuously videorecorded and sow location within the apparatuses was compared against TDB measured by the closest data logger [55]. These data were used to generate cubic curves to determine peak TDB preference and the thermal preference range for each reproductive stage [55]. In the present study, thermal preference data generated by Robbins et al. [55] were used to estimate the TDB that non-pregnant, mid-gestation, and late-gestation sows found to be cool (TDB < TDB preference range), comfortable (TDB = TDB preference range), and warm (TDB preference range < TDB < mild HS).

Results and discussion

Heat stress has well-documented negative effects on the health, productivity, and welfare of sows [31, 56, 57] and their future offspring [3, 14, 58]. As such, a variety of cooling methods have been developed and used in swine facilities to alleviate HS (i.e., floor cooling pads, evaporative cooling pads, chilled drinking water) [10, 59,60,61]. However, despite the availability and continued development of cooling and management strategies to mitigate HS, recommended or perceived temperature thresholds for implementation may not accurately reflect the thermal requirements of swine. For example, the most recent thermal recommendations for swine by the Federation of Animal Science Societies [41] are based upon 25- to 41-year-old data and likely do not accurately reflect the thermal requirements of swine with current genetics that have been selected for greater litter sizes, lean gain, and have overall greater metabolic heat production [9]. Additionally, these recommendations [26] do not differentiate by sow reproductive stage, which is important because HS sensitivity becomes greater as gestation advances [31, 62, 63]. Although some efforts have been made to develop thermal indices and thresholds for pigs, these efforts have largely focused on the use of theoretical predictions [36,37,38,39, 64], have had limited data collection in a relatively small number of non-pregnant sows [40], or have attempted to apply indices originally developed for cattle to pigs [65], and none to our knowledge have differentiated by reproductive stage or used behavioral metrics of thermal preference to identify comfortable temperature ranges for pigs. Therefore, our overall goal was to develop a swine specific decision support tool using both behavioral and thermoregulatory metrics derived from animal experimentation that would provide thermal recommendations for sows at three reproductive stages.

As environmental temperatures begin to rise, cutaneous blood flow increases in an attempt by the body to dissipate excess metabolic heat from the core to the skin where it can be lost to the environment by conductive, convective, evaporative, and radiant heat loss mechanisms [2, 66]. As a result, TS increases as heat gain from the environment becomes greater, and TS has frequently been used as a non-invasive indicator of HS in pigs via the use of thermal imaging cameras [31, 67,68,69], infrared thermometers [23, 70], and thermocouple probes [71]. Therefore, the relationship between TS and TDB was assessed in the present study to determine whether it could be used as an accurate predictor of thermal stress. However, it was determined that TS had a linear relationship with TDB (Fig. 1) indicating that the increasing environmental heat load (as well as other factors such as air speed) was likely responsible for elevated TS as opposed to the sows’ biological response to HS and total physiological heat load. This observation has implications towards the use of thermal imaging to assess physiological HS in swine. The linear relationship between TS and TDB suggests that thermal imaging and other technologies that assess heat load based upon TS may be useful for determining how TS is directly affected by the environment and is consistent with earlier observations in other species [13]. However, these technologies may not be an accurate or precise method of determining total physiological heat load of an individual pig to assess physiological HS. Therefore, based on these data, TS should be used in conjunction with other well-described metrics of HS assessment (i.e., RR, core body temperature, feed intake, etc.) [2, 60].

Evaporative heat loss via increased RR is an important method of thermoregulation for pigs as they do not possess functional sweat glands and must rely solely on heat loss through behavioral thermoregulation (i.e., wallowing, reduced feed intake, etc.) or via the skin and respiratory tract [2, 60, 72, 73]. Greater RR is often the first visual sign that pigs are suffering from HS and is considered an active form of heat loss by the sow and other species [13, 51, 52]. In the present study, the RR response to increasing TDB at each reproductive stage was best described by cubic equations that differed by reproductive stage (P < 0.05; Table 1) and were used to calculate the RR inflection points (Fig. 2). The RR inflection point was considered the primary thermoregulatory indicator of mild HS as described in the mild HS equations (Table 4) and decision support tool (Fig. 5). The inflection points at which RR increased in response to increasing TDB for non-pregnant, mid-gestation, and late-gestation sows were 25.5, 25.1, and 24.0 °C, respectively (Fig. 2). Although these data confirm previous reports that RR increases at lower TDB in late-gestation versus mid-gestation and non-pregnant sows [31], they contradict previously calculated RR thresholds with increasing TDB. For example, when comparing RR to increasing TDB in finisher pigs using a broken line assumption model, Huynh et al. [74] determined that the inflection point was 22 °C. It is important to note however that the finisher pigs in the aforementioned study [74] were fed ad libitum (as opposed to maintenance feeding common in non-pregnant and gestating sows) [43], likely increasing their metabolic heat production and resulting in greater thermal sensitivity to rising TDB. Furthermore, a recent review of 28 studies [75] reported an overall RR inflection point of 20 °C for pigs in response to increasing TDB. However, in this report [75], data were combined from prepubertal gilts, gestating sows, farrowing sows, lactating sows, and dry, non-pregnant sows to generate this value. Furthermore, no differentiation by production stage or physiological state (i.e., lactating sows are more HS sensitive than gestating and non-pregnant sows) was considered, which would likely result in an imprecise RR threshold estimation given the well-described thermoregulatory differences that exist by reproductive and production stage [29,30,31].

Fig. 2
figure 2

Effects of reproductive stage (late-gestation, mid-gestation, and non-pregnant) on respiration rate (RR) in multiparous sows (3.28 ± 0.81) exposed to incrementally increasing dry bulb temperature (TDB). Dashed lines indicate the inflection points and the TDB associated with the inflection point is indicated in the legend. This TDB was considered the point at which mild HS occurred

Table 4 Heat stress threshold equations to predict mild, moderate and severe heat stress in non-pregnant, mid-gestation, and late-gestation multiparous sows
Full size table

When heat gain from the environment overwhelms sensible and latent heat loss mechanisms, TB will begin to rise above the euthermic TB in response to increasing TDB [13]. In the present study, it was determined that the TB inflection point was best described by cubic equations that differed by reproductive stage (P < 0.05; Table 1). Body temperature inflection points for non-pregnant, mid-gestation, and late-gestation sows occurred at 0.10 °C above euthermic TB and at a TDB of 28.1, 27.8, and 25.5 °C, respectively (Fig. 3). The TB inflection points for non-pregnant, mid-gestation, and late-gestation sows were used as the primary thermoregulatory indicator in the moderate HS equations (Table 4) and in the decision support tool (Fig. 5). This decrease in TB inflection point with advancing reproductive stage was expected when considering the previously described increase in HS sensitivity as gestation advances [29,30,31, 34]. To our knowledge, this is the first study to describe the TDB threshold at which heat loss mechanisms fail to allow sows at three reproductive stages with current genetics to maintain a euthermic TB. Although these TDB inflection points cannot be considered the upper critical temperature (e.g., the point at which TB begins to rise uncontrollably) [13], these data may provide a more precise TDB threshold by which HS mitigation strategies should be employed in commercial swine facilities. Furthermore, it should be noted that the TB inflection points at all reproductive stages were 3.9 to 6.5 °C less than what is currently described as the upper temperature extreme for sows > 100 kg (32 °C) [26].

Fig. 3
figure 3

Effects of reproductive stage (late-gestation, mid-gestation, and non-pregnant) on body temperature (TB) in multiparous (3.28 ± 0.81) sows exposed to incrementally increasing dry bulb temperature (TDB) Dashed lines indicate the inflection points and the TDB associated with the inflection point is indicated in the legend. This TDB was considered the point at which moderate HS occurred

An abrupt and uncontrolled TB increase occurs when the upper critical temperature limit (UCT) has been reached [13]. In the present study, it was determined that the TDB threshold at which the abrupt TB increase occurred was at 0.20 °C above euthermic TB, and that it was similar (P > 0.05; 32.9 °C) for non-pregnant and mid-gestation sows, and lower (P < 0.05; 30.8 °C) for late-gestation versus non-pregnant and mid-gestation sows (Fig. 4). The TB inflection points at which the abrupt TB increase (0.20 °C) occurred for non-pregnant, mid-gestation, and late-gestation sows were used as the primary thermoregulatory indicator in the severe HS equations (Table 4) and in the decision support tool (Fig. 5). As expected, the severe HS threshold (e.g., the UCT) for late-gestation sows was deemed to be 1.2 °C lower than current guidelines for sows > 100 kg (32 °C) [26], and this response indicated that current UCT guidelines may not accurately reflect the severe HS threshold of late-gestation sows, which have greater heat gain and HS sensitivity when compared to non-pregnant and mid-gestation sows likely due to fetal growth [31]. However, the UCT for non-pregnant and mid-gestation sows in the present study was 0.90 °C greater than current > 100 kg sow guidelines (32 °C) [26]. While this response was unexpected given the aforementioned genetic advancements that have increased swine metabolic heat production [9, 76, 77] and likely sensitivity, this response may be explained by feed intake differences related to metabolic heat production and heat gain. In the present study and in commercial practice, gestating sows and non-pregnant sows in the breeding population are fed at maintenance to prevent excessive maternal weight gain [43]. This would likely lead to a decrease in heat production when compared to ad libitum fed populations as increased feed intake is associated with greater heat production due to the heat increment of feeding [13, 78]. Therefore, because current guidelines [26] do not differentiate by production stage, physiological state, or feeding level, it is likely that the UCT may be slightly greater for limit-fed sows > 100 kg based upon results from the present study (Fig. 4).

Fig. 4
figure 4

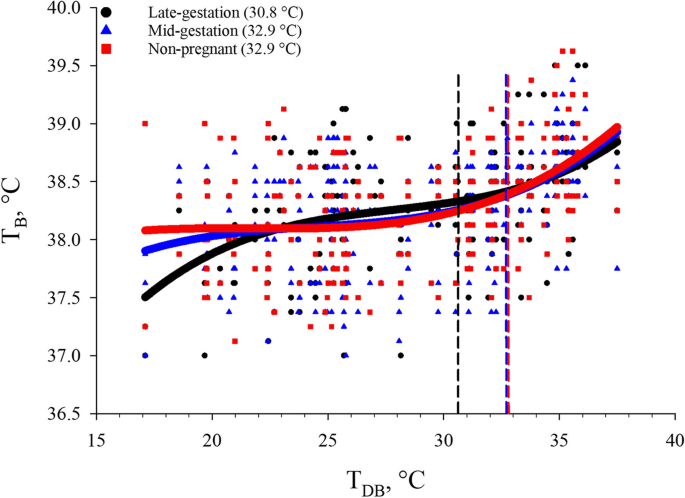

Effects of reproductive stage (late-gestation, mid-gestation, and non-pregnant) on body temperature (TB) in multiparous (3.28 ± 0.81) sows exposed to incrementally increasing dry bulb temperature (TDB). Dashed lines indicate the point at which TB increased abruptly (+ 0.20 °C) above baseline TB and the TDB associated with this point is indicated in the legend. This TDB was considered the point at which severe HS occurred

Fig. 5
figure 5

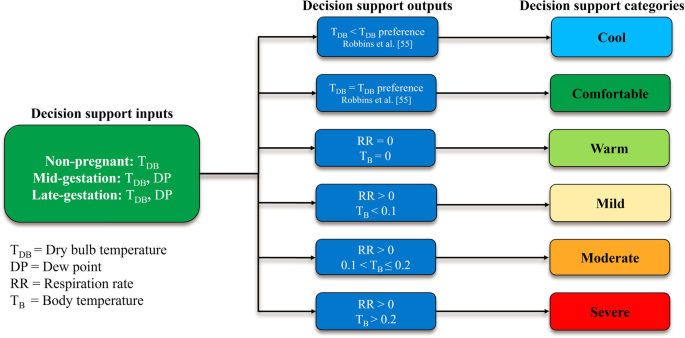

A behavior and physiology-based decision support tool designed to predict thermal comfort and stress in non-pregnant, mid-gestation, and late-gestation sows

Relative humidity may play a role in the thermoregulatory response of pigs, particularly at greater TDB [74]. For example, the efficacy of respiratory heat exchange with the environment is influenced by RH, and greater RH during HS causes increased RR in pigs [79]. In addition, increasing RH at greater TDB leads to reductions in average daily body weight gain in grow-finish pigs [74]. As such, in addition to TDB, DP was incorporated in the development of the HS threshold equations (Table 4) for use in the decision support tool (Fig. 5). However, it was determined that the addition of DP was only significant (P < 0.05) for mid- and late-gestation sows and did not influence the RR or TB response of non-pregnant sows (Table 1). This lack of a significant response to DP (P > 0.05) by non-pregnant sows may be due to their reduced HS sensitivity relative to mid- and late-gestation sows as we have previously reported [31]. Therefore, this may result in a decreased requirement for the activation of heat loss mechanisms and likely a reduced RR and TB sensitivity to adverse climactic conditions in non-pregnant sows fed at maintenance.

Many thermal indices have used animal-based thermoregulatory responses to quantify HS intensity and often consider any TDB below the HS threshold to be the TDB range at which the species of interest is comfortable [80]. However, the absence of an active thermoregulatory (e.g., increased RR and TS) or TB response is not necessarily an indicator of thermal comfort. This is because the transition from the thermal comfort zone to the warm zone is defined by limited thermoregulatory reactions defined by passive facilitation of heat loss that will intensify as TDB increases [13]. As long as heat gain is balanced with heat loss, the animal is considered to be at thermoneutrality [81]; however, this TDB range may not be reflective of an animal’s thermal comfort zone (e.g., the TDB range in which an individual prefers to spend time in and feels relaxed) [80]. As such, the thermal preferences of non-pregnant, mid-gestation, and late-gestation sows were incorporated into the decision support tool (Fig. 5), and data were derived from a previous report by our group [55]. These data [55] indicate that non-pregnant and mid-gestation animals prefer a similar (P > 0.05) TDB range (13.2 to 16.4 °C) while late-gestation sows prefer a slightly lower (P < 0.05) TDB range (12.6 to 15.6 °C). Therefore, for utilization in the decision support tool (Fig. 5), the thermal comfort zone was defined as the TDB range in which the sows prefer to spend most of their time. Additionally, based upon the thermal preference data, the cool zone was defined as any TDB below the lower limit of the thermal comfort zone, and the warm zone was defined as the TDB range in-between the upper limit of the thermal comfort zone and the start of mild HS (Fig. 2). Although maintaining facilities at sows’ thermal comfort zone may not be feasible during hotter times of the year or in regions with prolonged periods of HS, these guidelines may be useful during cooler times of the year when determining facility heating requirements.

Conclusions

This study established HS thresholds and developed equations to predict mild, moderate, and severe HS in commercially relevant non-pregnant, mid-gestation, and late-gestation sows. These data were combined with thermal preference data previously reported by our group to develop a behavior and physiology-based decision support tool to predict thermal comfort and HS. Based on results from the present study, HS thresholds were influenced by reproductive stage and differed from previously established thresholds. In addition, the decision support tool developed through this research may be used to predict environmental conditions sows consider to be cool, comfortable, warm, mild HS, moderate HS, and severe HS. To our knowledge, this is the first thermal index developed specifically for gestating sows that incorporates both physiological and behavioral metrics of thermal preference and stress.

Data Availability

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request. All statistical codes used to analyze data are available as supplementary files.

Abbreviations

  • AIC:: Akaike's Information Criteria
  • B0 :: Intercept
  • B1 :: Linear regression coefficient
  • DP:: Dew point
  • HS:: Heat stress
  • IUHS:: In utero heat stress
  • RH:: Relative humidity
  • RR:: Respiration rate
  • TB :: Body temperature
  • TDB :: Dry bulb temperature
  • THI:: Thermal humidity index
  • TN:: Thermoneutral
  • TS :: Skin temperature
